Container House Steel Frame Welded Structure

Product Description

New Technology Steel Structure Frame Welded Flat Pack Container House

Steel: Q235B Stainless Steel, 2.3mm

Q235B has certain elongation, strength, good toughness and castability, easy to punch and weld, and is

widely used in the manufacture of general mechanical parts. It is mainly used for welded structural parts

with high quality requirements in construction and bridge engineering.

1.Bottom frame feet

2.Bottom frame secondary beam (12*2.0 C-shaped steel)

3.Bottom frame long side beam (5635mm)

4.Cement fiber board (19mm)

5.2mm PVC Carpet

6.Column trim (2600mm)

7.Prism （2535mm）

8.Plastic steel windows + anti-theft net

9.Ceiling plate 0.5mm V-830 profiled steel plate

10.Class A fireproof glass wool

11. skin panel (0.45mm)

12.Top frame secondary beam

13.Top frame long side beam (5635mm)

14.Top frame feet

15.Top frame short side beam （2690mm）

16.Top tie beam square tube

17.Top frame long side beam (5635mm)

18.Prism （2535mm）

19.Drain pipe

20.wall panel （75mm）

21.PVC baseboard

22.Bottom tie beam square tube

23.Bottom frame short side (2690mm)

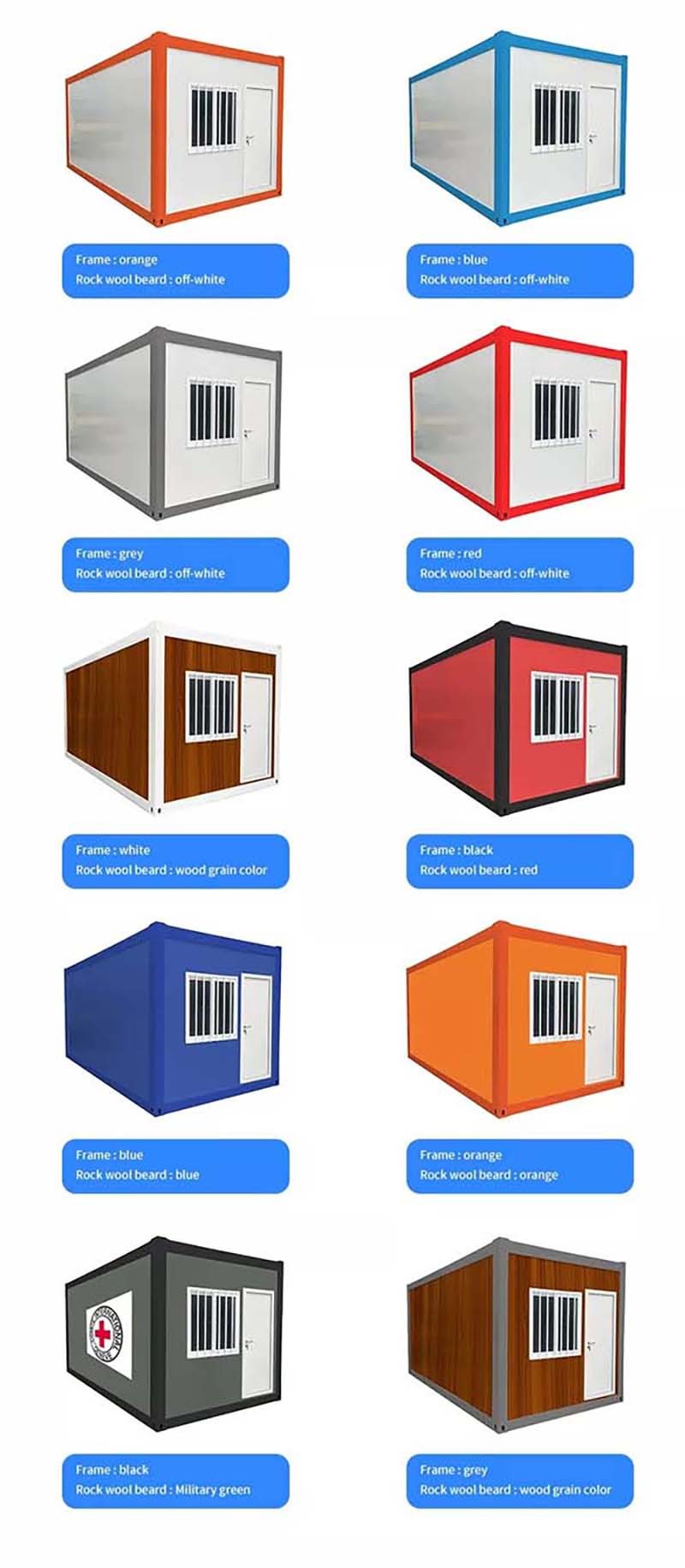

 Color Options

We provide many color options of the flat pack container house for you to select.

Our Advantages

1.Easy to install

2.Convenient for moving,transporting,water cleaning.

3.Service life:30 years

4.Good waterproof, sound-insulated,heat preservation,environmental protection.

5.The layout is customized design.

6.Beautiful appearance,different colors.

Applications

New Technology Steel Structure Frame Welded Flat Pack Container House can be used for:

outdoor office, outdoor home, outdoor mall, temporary hospital, construction sites living house etc.

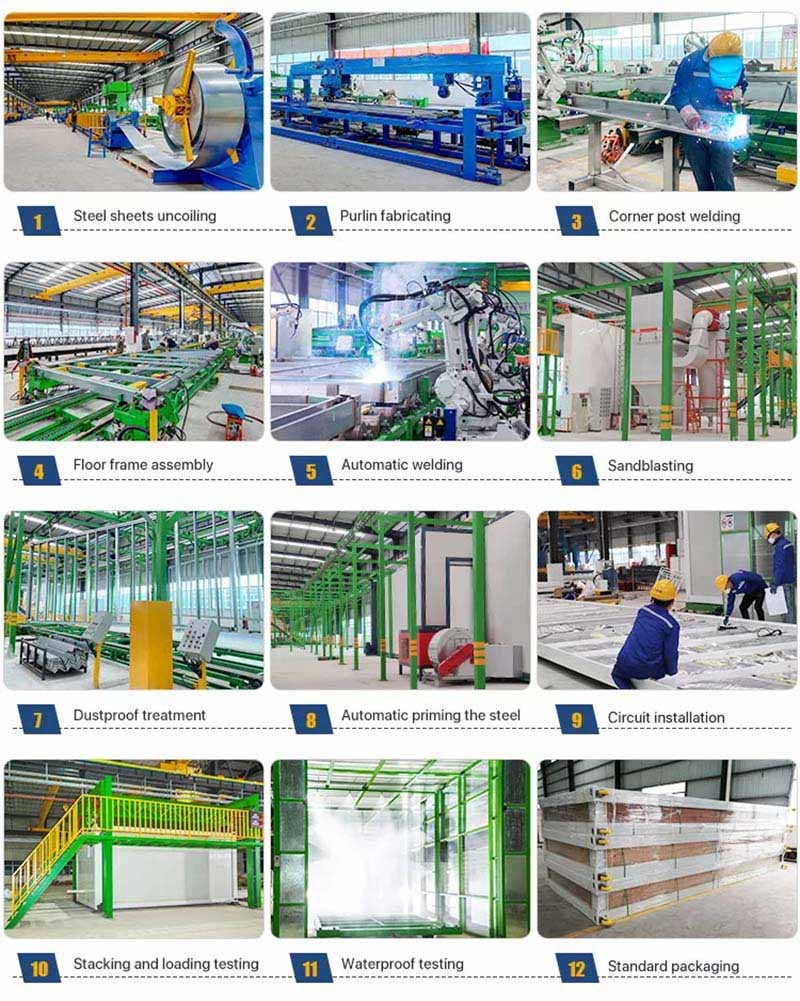

Production process
